The ModuLab program allows the user to:
1. Select a specific module from the database.
2. Vary 2 (X- and Z-axis) environmental inputs along a selected range (beam irradiation, diffuse irradiation, ambient temperature, sun elevation angle, angle of incidence, wind speed, and site altitude).

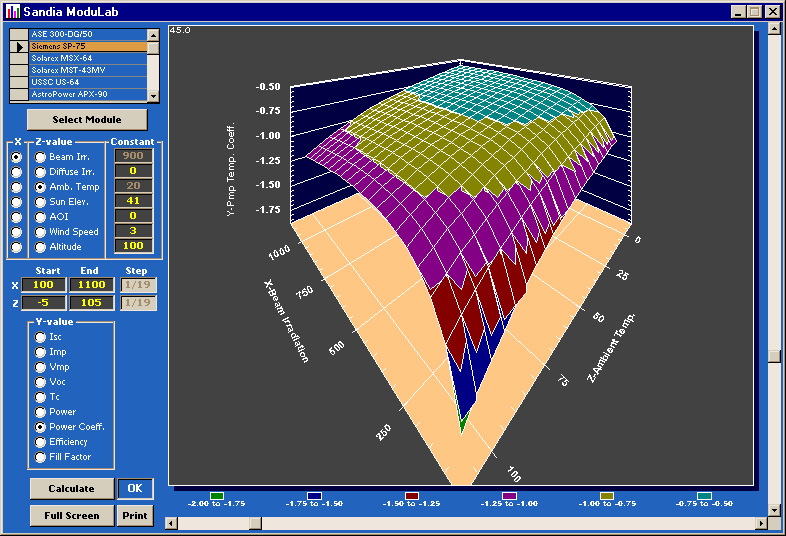

3. Chart (Y-axis) the selected ouput (Isc, Imp, Vmp, Voc, Tc, Power, Power Coefficient, Efficiency, or Fill Factor) in a visual, rotatable 3-dimensional plot (see above graphic, click for larger image).
